STANDARD

products
• Foodstuffs
• Chemicals


Transport by
• Road
• Rail
• Sea


Tank capacities
• 13.500 - 28.000 liters
APPROVALS
• IMO/UN portable T1 - T14
• ADR/RID
• US DOT CFR49
• UIC, TIR, CSC, Transport Canada, SELO
WALKWAY
• F-style
• B-style
• Full deck-out

F Style

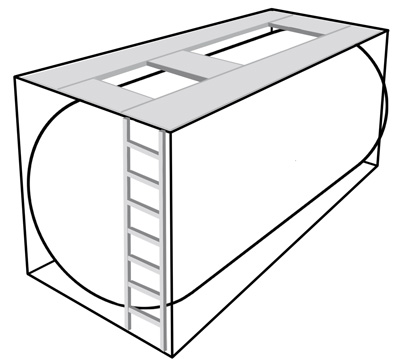

B-Style

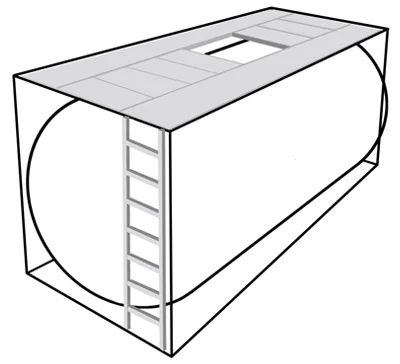

Full Deck-out
HANDRAIL
• Top operated handrail
• Ground operated handrail

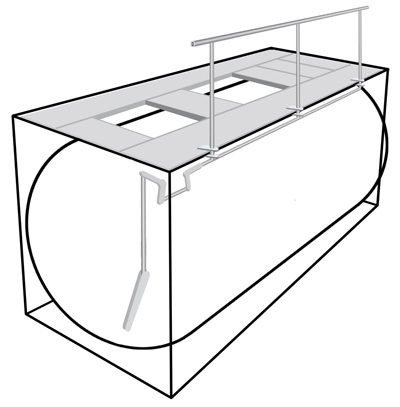

Top operated handrail

Ground operated handrail
insulation
• Rockwool or PU on the shell at the end
• 50 mm
• 80 mm
• 100 mm

HEATING SYSTEMS
• Steam Heated
• Optional: Glycol heated

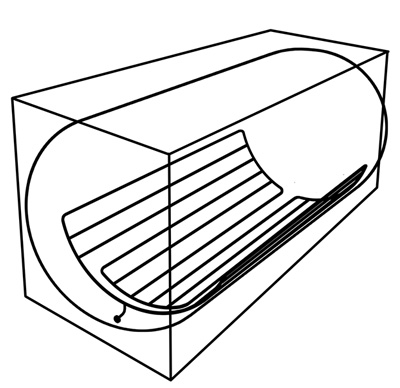

Steam heated

Glycol heated
REAR SPILLBOX
• Airline / Vapour Return
• Top discharge connection/provision
• Spare connection (optional)

Rear spillbox
CENTer SPILLBOX
• Manhole
• Pressure valve
• Connection for second relief valve
• Optional: Rupture disk and manometer

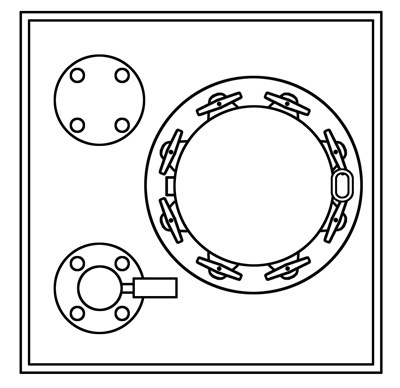

Centre spillbox
covers (optional)
• Spill box covers
• Bottom cabinet cover

Covers
BOTTOM DISCHARGE
• Outlet 3″ BSP with dustcap
• Optional: heated bottom tank pad
• Optional: several connections

Bottom discharge
TOP LOAD/DISCHARGE (T12-T14) (OPTIONAL)
• 2” or 3” Top discharge connection
• Syphon tube
• Optional: No Bottom discharge valve,
Sealed/welded bottom tank pad

Top Load
+ Discharge only (T14)

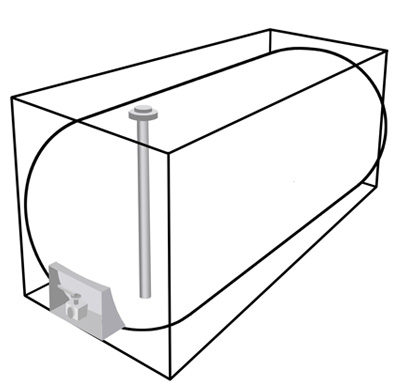

Top and Bottom Load
+ Discharge (T12)
GROUND OPERATED AIRLINE (Optional)
• Ground operated airline

Ground operated airline
TELEMATICS SYSTEM (Optional)
• Location
• Temperature control
• Level meters

GPS location

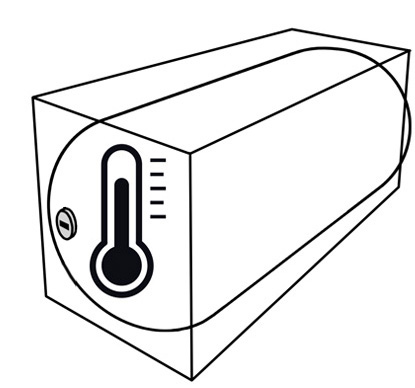

Temperature control

Level sensor

GLOBALY AVAILABLE
Long term & short term leases
