SWAP BODY
products
• Foodstuffs
• Chemicals
Transport by
• Road
• Rail
Tank capacities
• 30.000 - 35.000 liters
APPROVALS
• IMO 1 and IMO4
• IMDG, UN portable T2 – T14
• ADR/RID (L4BN, L4BH, L4DH)
• US DOT CFR49
• UIC, TIR, CSC, Transport Canada, SELO
TANK MATERIAL
• Stainless steel 316L
• Lightweight composite
TARE WEIGHT
• Steel: 3.950 - 5.000 kg
• Composite: 2.250 - 2.500 kg
WALKWAY
• Half-deck out
• Full deck-out
Half-deck out
Full deck-out

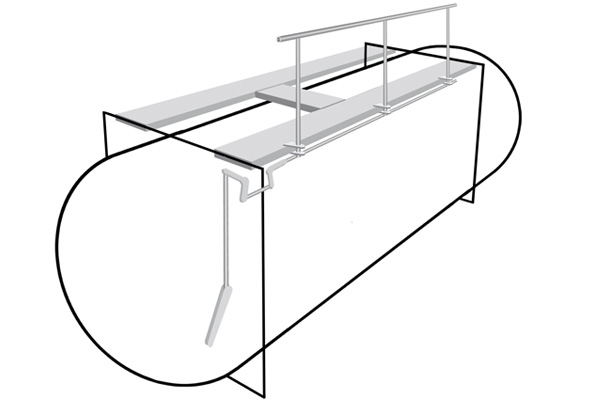

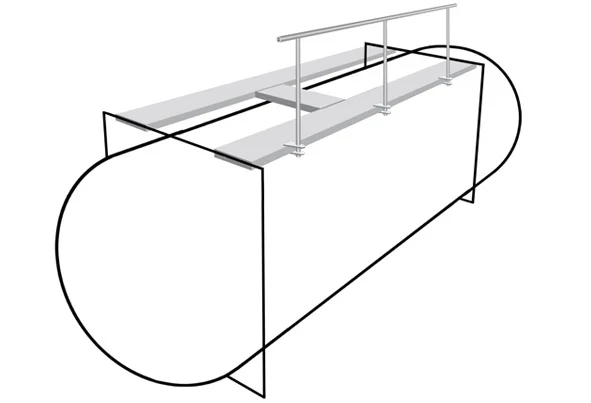

HANDRAIL
• Top operated handrail
• Ground operated handrail
Top operated handrail
Ground operated handrail
insulation
• Rockwool or PU on the shell at the end
• 50 mm
• 80 mm
• 100 mm
HEATING SYSTEMS
• Steam Heated
• Optional: Glycol heated

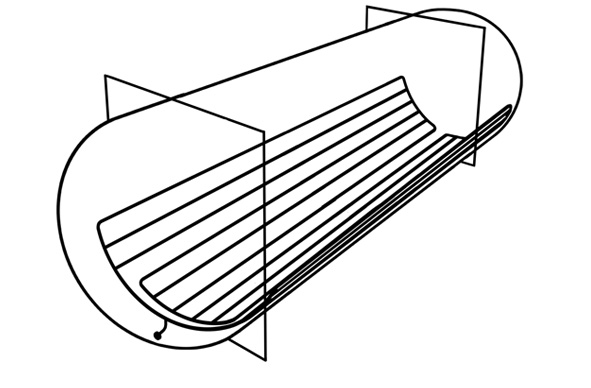

Steam heated
Glycol heated
REAR SPILLBOX
• (Ground operated) Airline
• Top discharge provision
• Spare connection
• Cleaning hatch
Rear spillbox

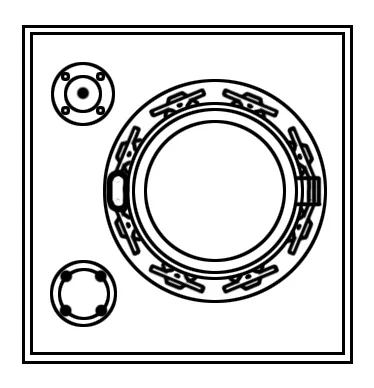

CENTer SPILLBOX
• Manhole
• Pressure valve
• Optional: rupture disk and manometer
Center spillbox

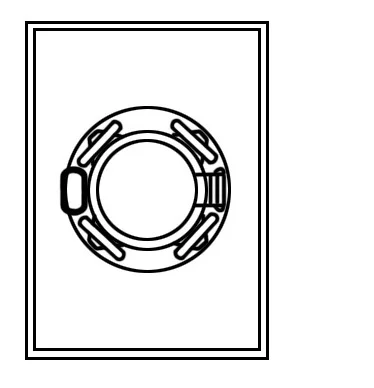

cleaning hatches
• When equipped with baffles extra cleaning
hatches are installed for optimal cleaning
Cleaning hatches

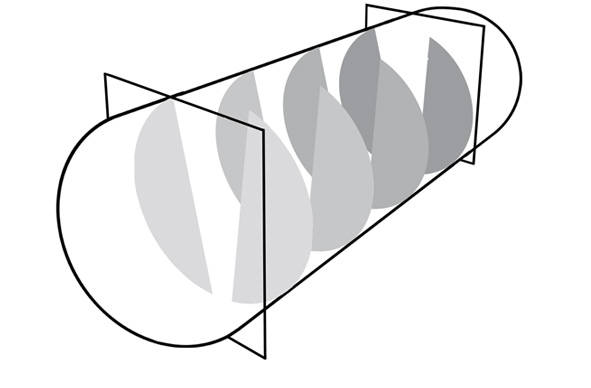

Baffles (Optional)
• 70% fully welded vertical V-shaped baffles
Baffles

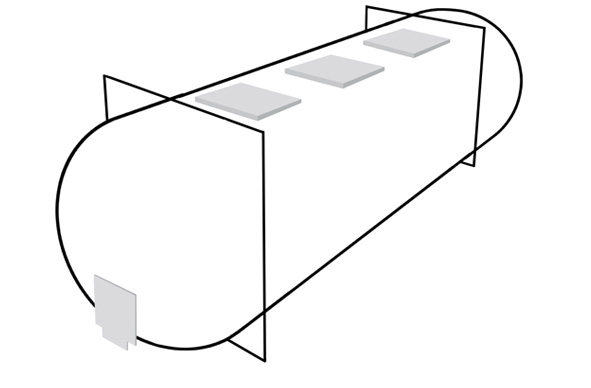

covers (optional)
• Spill box covers
• Bottom cabinet cover
Covers
BOTTOM DISCHARGE
• Outlet 3″ BSP with dustcap
• Optional: heated bottom tank pad
• Optional: several connections
Bottom discharge

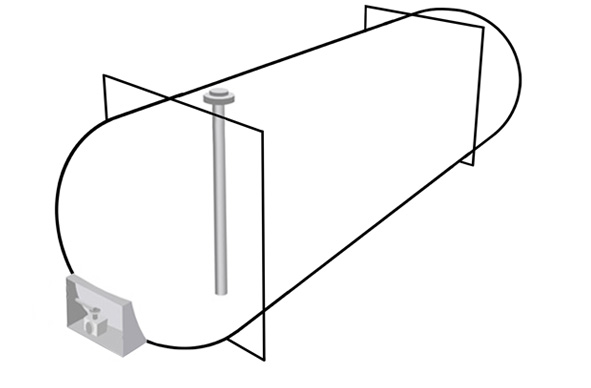

TOP LOAD/DISCHARGE (T12-T14) (OPTIONAL)
• 2” or 3” Top
discharge connection
• Syphon tube
• Optional:
No Bottom discharge valve,
Sealed/welded bottom
tank pad
Top Load + Discharge only (T14)
Top and Bottom Load + Discharge (T12)
GROUND OPERATED AIRLINE (Optional)
• Ground operated airline
Ground operated airline
TELEMATICS SYSTEM (Optional)
• Location
• Temperature control
• Level meters

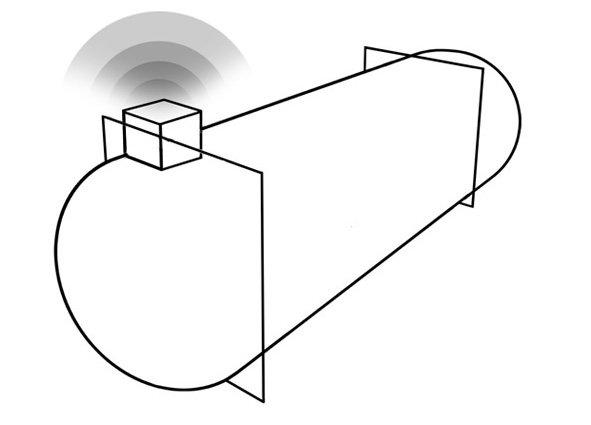

GPS location

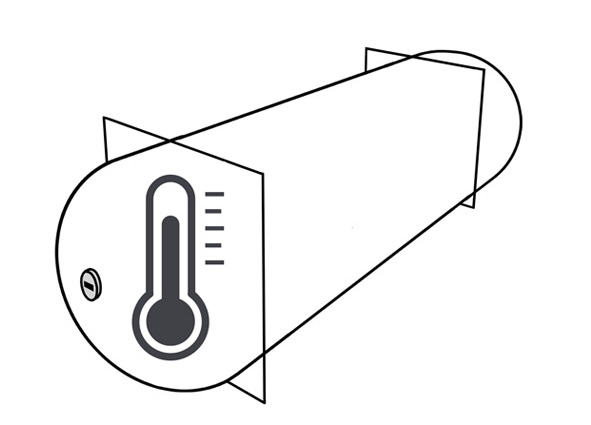

Temperature control

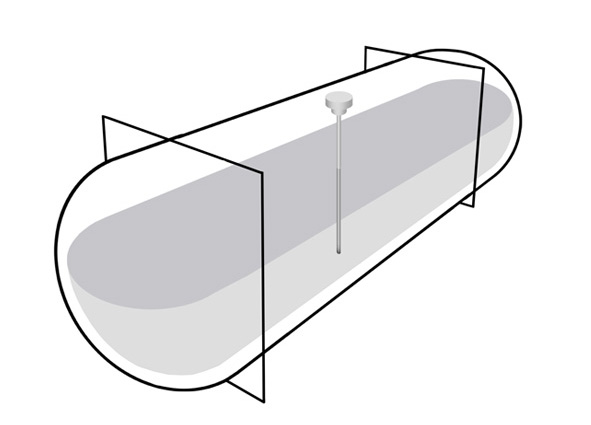

Level sensor
ALSO AVAILABLE IN COMPOSITE
> 40% Lighter,
> 40% Better Insulated
> Lower carbon foot print
